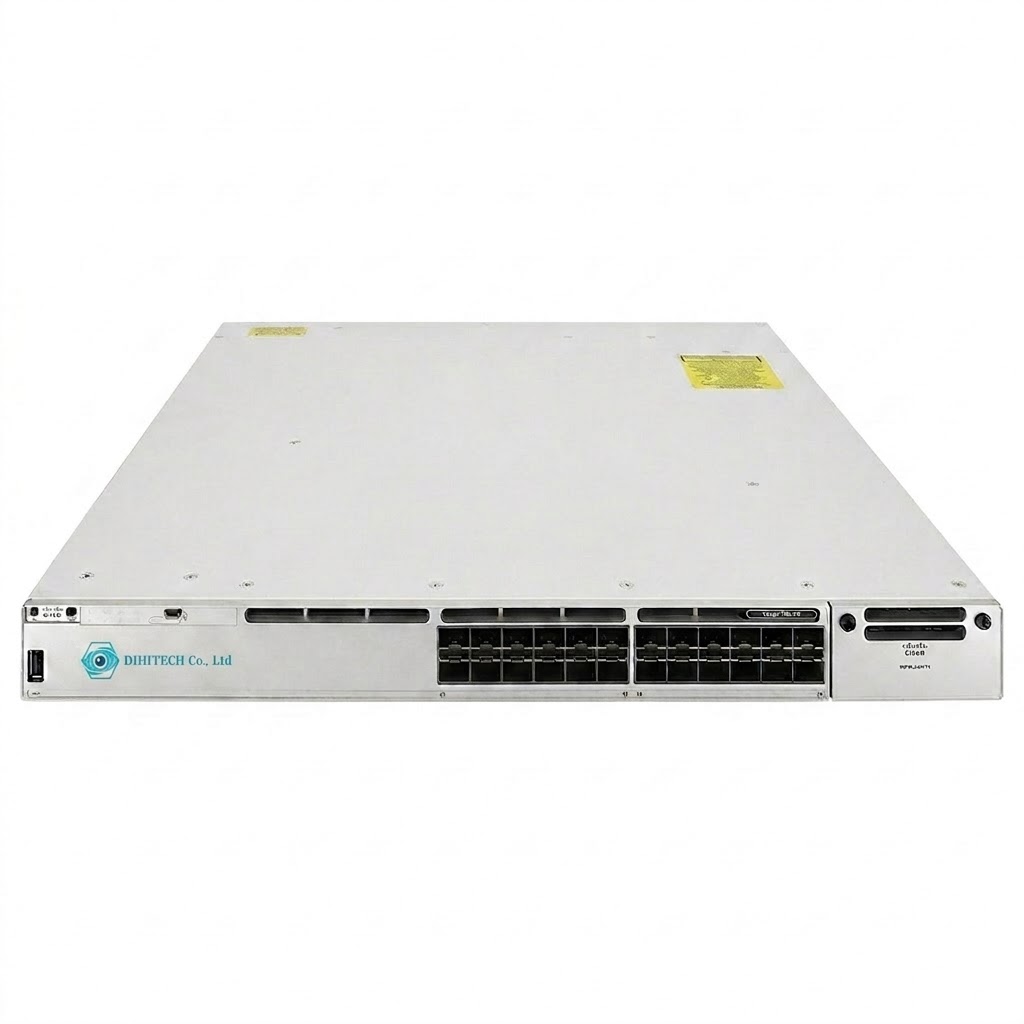

24-port Gigabit SFP Switch Cisco C9300-24S-E
Mã SP: C9300-24S-E
Hãng SX: CISCO
Liên hệ: 0986.865.370
Switch Cisco C9300-24S-E Catalyst 9300 24-port 1G SFP, Network Essentials -24 cổng 1G SFP -Cổng Uplink: 1G/10G/25G/40G/mGig -Nguồn PWR-C1-715WAC-P=CPU x86, DRAM 8G, Flash 16G -Cisco IOS XE tích hợp Network Essentials -Băng thông chuyển mạch: 208 Gbps -Tốc độ chuyển tiếp (gói): 154.76 Mpps -Cáp StackData (tùy chọn): STACK-T1-50CM, 1M, 3M -Cáp StackPower (tùy chọn): CAB-SPWR-30CM, 150CM
24-port Gigabit SFP Switch Cisco C9300-24S-E
- Catalyst 9300 24-port 1G SFP with modular uplinks, Network Essentials.
- Total 10/100/1000, Multigigabit copper or SFP Fiber: 48 port Cisco UPoE, 36 ports 100M/1G/2.5G + 12 ports Multigigabit (10G/5G/2.5G/1G/100M).
- Uplink Configuration: Modular Uplinks.
- Default AC power supply: 1100W AC.
- Switching capacity: 580Gbps.
- Switching capacity with stacking: 1060Gbps.
- Forwarding rate: 431.54Mpps.
- Forwarding rate with stacking: 788.69Mpps.
- Chassis only Dimensions (H x W x D): 4.4 x 44.5 x 48.5 cm.
- Weight (with default power supply): 9.34kg.
Đặt mua hàng Online ngay hôm nay để được hỗ trợ giá tốt nhất. Tham khảo thêm thông tin tại Hotline 098 621 62 90 hoặc Facebook Dihitech nhé. (DIT)
| Configurations | |
| Total 10/100/1000, Multigigabit copper or SFP Fiber | 24 1G SFP |
| Uplink Configuration | Modular Uplinks |
| Default AC power supply | 715W AC |
| Power supply | |
| Primary Power Supply | PWR-C1-1900WAC-P |
| Default or Upgrade | Upgrade |
| Available PoE | 1290W |
| With 350W Secondary PS | 1640W |
| With 715W secondary PS | 2005W |
| With 1100W Secondary PS | 2880W |
| With 1900W Secondary PS | 2880W |
| Supported stacking options | |
| Stacking support | StackWise-480 |
| Stacking bandwidth support | 480 Gbps |
| Optional Stacking hardware | StackWise cable |
| Number of members | 8 |
| Performance specifications | |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8,000 |
| QoS scale entries | 5,120 |
| ACL scale entries | 5,120 |
| Packet buffer per SKU | 16MB |
| FNF entries | 64,000 |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per Catalyst 9300 Series stack | 448 |
| Bandwidth specifications | |
| Switching capacity | 208 Gbps |
| Switching capacity with stacking | 688 Gbps |
| Forwarding rate | 154.76 Mpps |
| Forwarding rate with stacking | 511.90 Mpps |
| General Specifications | |
| Chassis only Dimensions (H x W x D) | 4.3 x 44.4 x 44.9 cm |
| W/ Default Power Supply Dimensions (H x W x D) | 4.3 x 44.4 x 48.8 cm |
| W/ 1100W Power Supply Dimensions (H x W x D) | 4.3 x 44.4 x 52.6 cm |
| Weight (with default power supply) | 7.64kg |
| Mean Time Between Failures – MTBF (hours) | 284,130hours |
| Safety and compliance | |
| Safety certifications | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic compatibility certifications | 47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
- Bảo hành: 12 tháng.
