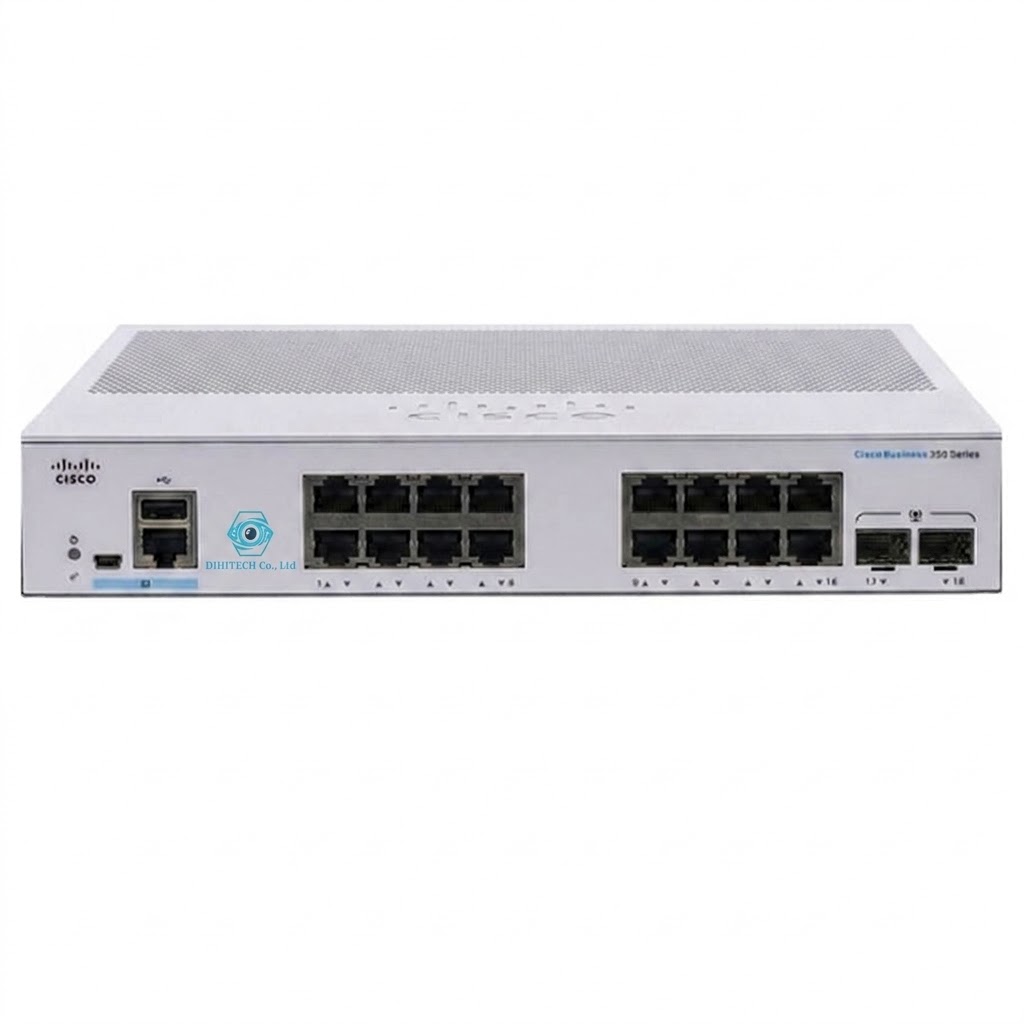

16-Port GE Managed Switch CISCO CBS350-16T-2G-EU
Mã SP: CBS350-16T-2G-EU
Hãng SX: CISCO
Liên hệ: 0986.865.370
CBS350-16T-2G-EU Cisco CBS350 Managed 16-port GE, 2x1G SFP -16 10/100/1000 ports -2 Gigabit SFP -Rack-mountable -Support 16-port Gigabit Ethernet and 2-port SFP. Switching Capacity: 36.0Gbps. MAC table: 16K addresses. Flash: 256MB
16-Port Gigabit Ethernet Managed Switch CISCO CBS350-16T-2G-EU
- Support 16-port Gigabit Ethernet and 2-port SFP.
- Switching Capacity: 36.0Gbps.
- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.
- MAC table: 16K addresses.
- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.
- Flash: 256MB.
- CPU: 800MHz ARM.
- DRAM: 512MB.
- Dimensions (W x D x H): 268 x 272 x 44 mm.
- Weight: 1.78kg.
Đặt mua hàng Online ngay hôm nay để được hỗ trợ giá tốt nhất. Tham khảo thêm thông tin tại Hotline 098 621 62 90 hoặc Facebook Dihitech nhé. (DIT)
| Model | CBS350-16T-2G-EU |
| Performance | |
| Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 26.78mpps |
| Switching Capacity | 36.0Gbps |
| Layer 2 switching | Spanning Tree Protocol Port grouping/link aggregation - Up to 8 groups - Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregationVLAN -Support for up to 4,094 VLANs simultaneously -Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN -Management VLAN -Private VLAN with promiscuous, isolated, and community port -Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks -Guest VLAN, unauthenticated VLAN -Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication -CPE VLAN Voice VLAN Multicast TV VLAN VLAN Translation Q-in-Q Selective Q-in-Q Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) Unidirectional Link Detection (UDLD) Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping IGMP Querier Head-of-Line (HOL) blocking Loopback DetectioN |
| Layer 3 | IPv4 routing -Wirespeed routing of IPv4 packets -Up to 990 static routes and up to 128 IP interfaces IPv6 routing Layer 3 Interface -Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface Classless Interdomain Routing (CIDR) Policy-Based Routing (PBR) DHCP Server DHCP relay at Layer 3 User Datagram Protocol (UDP) relay |
| General | |
| Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
| MAC table | 16K addresses |
| Buttons | Reset button |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
| LEDs | System, Link/Act, Speed |
| Flash | 256 MB |
| CPU | 800MHz ARM |
| DRAM | 512 MB |
| Packet buffer | 1.5 MB |
| Ports | |
| Total System Ports | 18 x Gigabit Ethernet |
| RJ-45 Ports | 16 x Gigabit Ethernet |
| Combo Ports (RJ45 + Small form-factor pluggable [SFP]) | 2 x SFP |
| Console port | Cisco standard mini USB Type-B/RJ45 console port |
| USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
| Discovery | |
| Bonjour | The switch advertises itself using the Bonjour protocol |
| Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP‑MED extensions | LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones |
| Cisco Discovery Protocol | The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics via Cisco Discovery Protocol |
| Power consumption (worst case) | |
| System Power Consumption | 110V=18.63W 220V=18.37W |
| Heat Dissipation (BTU/hr) | 64.46 |
| Environmental | |
| Unit dimensions (W x D x H) | 268 x 272 x 44 mm |
| Unit weight | 1.78 kg |
| Power | 100-240V, 50-60 Hz, internal, universal |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | -5° to 50°C |
| Storage temperature | -25° to 70°C |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Acoustic noise and Mean Time Between Failure (MTBF) | |
| FAN (Number) | Fanless |
| MTBF at 25°C (hours) | 2,165,105 |
- Bảo hành: 12 tháng.
